Snowflake Data Lineage: The Complete Guide to Tracking Data Flow

Snowflake data lineage delivers complete visibility into how data moves, transforms, and is consumed across your ecosystem. This guide explains Snowflake’s native lineage tools, metadata modeling, automation, and visualization setup. It also shows how OvalEdge enriches lineage with column-level, cross-system, and governance context, transforming metadata into actionable insight, audit readiness, and enterprise data trust.

If you’re working with large volumes of data in Snowflake, there’s one question you’ve probably asked more than once: “Where did this data come from and what happened to it along the way?”

The numbers highlight this painfully clear.

64% of B2B marketing leaders responding to Forrester’s Marketing Survey, 2024, acknowledged that they don’t trust their organization’s marketing measurement for decision‑making.

That lack of trust isn’t because teams don’t have enough data. It’s because they can’t see how it moves, what changed, who changed it, and whether the result is still accurate.

This is where Snowflake data lineage becomes a game-changer by enabling end-to-end visibility into how your data is ingested, transformed, and consumed across your ecosystem.

In this guide, we’ll walk through how to implement Snowflake data lineage step-by-step, enhance it with governance tooling, and give your teams the visibility they need to trust every metric.

What is Snowflake data lineage?

Snowflake data lineage refers to the process of tracking the complete lifecycle of data within your Snowflake environment, from how it’s ingested, transformed, and stored, to how it’s consumed downstream. It gives you a transparent view of how data moves through your system, which objects depend on others, and where potential breakpoints or risks lie.

At its core, lineage helps you answer three critical questions:

• Where did this data come from?

• What transformations has it undergone?

• Who or what is using it now?

Snowflake offers native support for lineage tracking through two main features:

• Snowsight UI provides a built-in visual interface for exploring upstream and downstream relationships between objects.

• GET_LINEAGE() table function, which allows you to extract lineage data programmatically using SQL, with filters for object type, name, and domain.

This lineage is automatically captured as part of Snowflake’s metadata services, without requiring manual instrumentation. When you create or modify objects using DDL or DML commands (like CREATE TABLE, INSERT INTO, MERGE, UPDATE, etc.),

Snowflake logs the dependencies and transformation paths behind the scenes. It also tracks views, materialized views, streams, and tasks, allowing you to reconstruct data flow across complex pipelines.

Why does this matter?

In large-scale data environments, not knowing how tables or views are interconnected can lead to broken dashboards, failed ETL pipelines, or non-compliance with regulations. With data lineage in place, you can:

• Trace downstream impact before changing schemas or pipelines

• Quickly identify the root cause of data quality issues

• Ensure compliance by proving where data originated and how it was handled

This isn't just a data engineering concern; it's a foundational capability for any team that depends on reliable, auditable data flows.

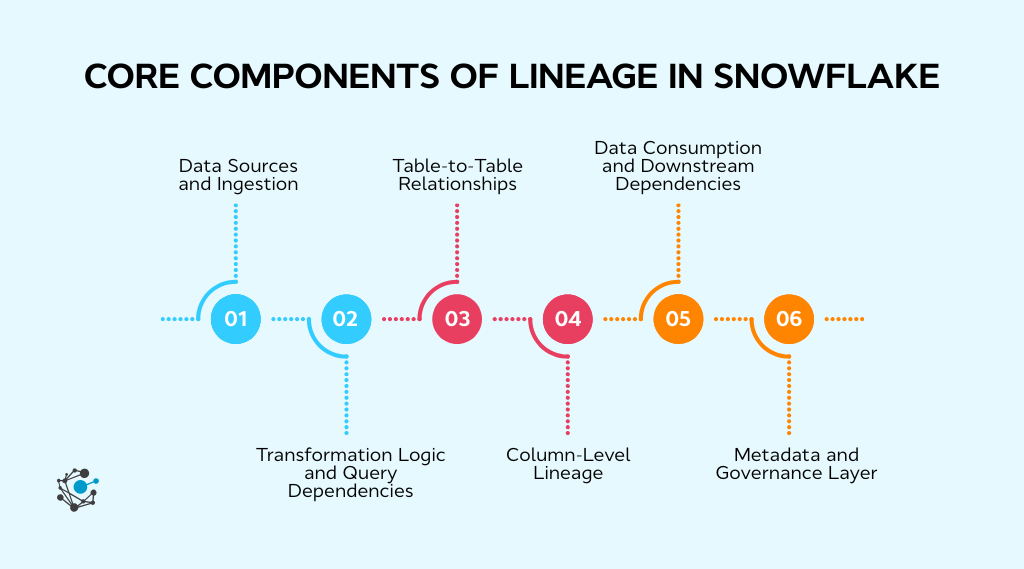

Core components & granularity of lineage in Snowflake

Building reliable data lineage isn’t just about mapping where data goes; it’s about tracking every transformation, relationship, and access point across the stack. Snowflake provides metadata at multiple layers. Here's a sharper breakdown:

1. Ingestion & data sources

Snowflake traces data ingestion from sources like S3, Azure Blob, and JDBC connectors into internal tables. While external sources aren't visualized in Snowsight, ingestion metadata is captured in query and access logs, ideal for lineage pairing via tools like OvalEdge.

2. Transformations & query logic

All transformations via SQL, views, procedures, and tasks are logged. Metadata from ACCESS_HISTORY and OBJECT_DEPENDENCIES lets you reconstruct how datasets are joined, filtered, or reshaped, crucial for understanding report logic and pipeline flows.

3. Table relationships

Parent-child relationships (including those involving temp and transient tables) are recorded. These help when renaming tables, tracing issues, or managing migrations.

4. Column-level lineage

Snowflake tracks some column derivations, but full visibility often requires external parsing or integration with tools like OvalEdge or Manta. This is key for tracking PII and calculated fields in reports.

5. Downstream consumption

Access History shows which users, queries, and tools touch specific tables, vital for impact analysis, usage auditing, and reducing unused assets.

6. Governance metadata

Using views like OBJECT_DEPENDENCIES, QUERY_HISTORY, and OBJECT_HISTORY, you can build lineage graphs and feed data into governance workflows for tagging, classification, and compliance auditing.

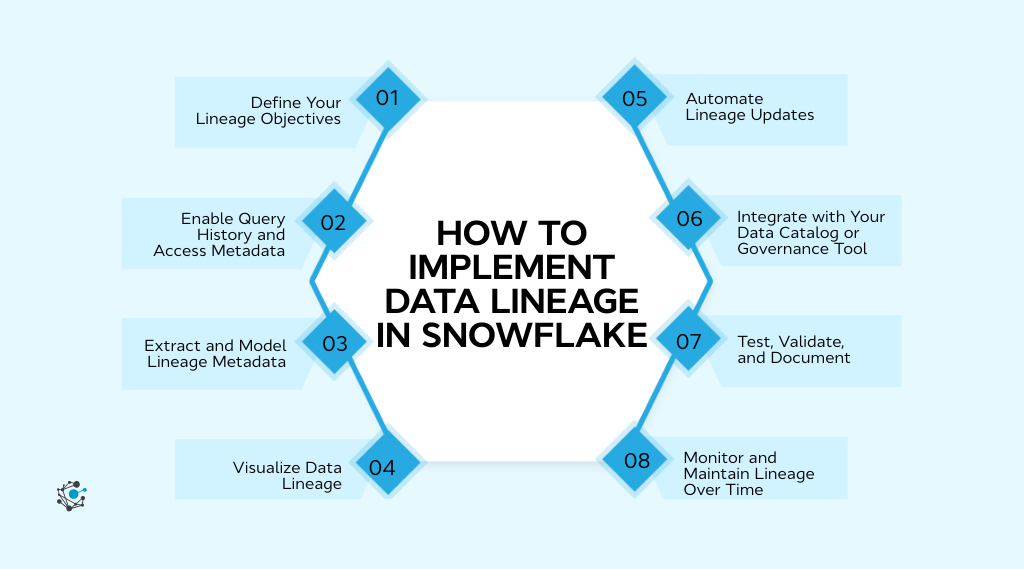

Step-by-step setup: Implementing data lineage in Snowflake

Setting up data lineage in Snowflake doesn’t require additional infrastructure—but it does require a clear plan. Here's a step-by-step approach to help you go from metadata to a fully operational lineage system you can trust.

Step 1: Define your lineage objectives

Jumping straight into metadata queries without knowing what you need leads to noise. Lineage can be captured at multiple levels, such as table, column, pipeline, and even application-level. So clarity is key.

Action steps:

• List your critical assets: Identify high-impact tables, dashboards, reports, and ETL tasks (e.g., revenue tables, financial dashboards, audit reports).

• Decide granularity: Choose whether you need lineage at the table level, column level, or across systems.

• Define your use cases: Examples include change impact analysis, audit readiness, or root cause analysis.

• Create a metadata worksheet: Log object names, owners, last updated date, known dependencies, and where they're consumed (BI, apps).

Step 2: Access required metadata sources

Snowflake tracks metadata in its ACCOUNT_USAGE and INFORMATION_SCHEMA views already. So you just need to extract it.

Views you’ll need:

• SNOWFLAKE.ACCOUNT_USAGE.QUERY_HISTORY: tracks executed queries, users, and timestamps.

• SNOWFLAKE.ACCOUNT_USAGE.ACCESS_HISTORY: shows which objects were accessed in each query.

• SNOWFLAKE.ACCOUNT_USAGE.OBJECT_DEPENDENCIES: tracks object-to-object dependencies.

Step 3: Extract and model the lineage relationships

Extract object dependencies, parse transformations (e.g., CTAS, INSERT SELECT), and join them with OBJECTS to enrich the graph. Store lineage as edges (source → target) in a custom table for better tracking and visualization.

Step 4: Automate metadata extraction

You don’t want to run these queries manually every day. Automate lineage data collection using Snowflake-native features.

Action steps:

1. Create a task to extract lineage metadata daily



2. Use Snowflake Streams to track changes in your lineage table if you want delta-based processing.

3. Store snapshots with timestamping for historical comparison.

Step 5: Visualize lineage for exploration and debugging

Snowflake provides basic table/view-level lineage. For richer insights like column-level tracking, ETL-to-BI flow mapping, or business glossary overlays, external tools like OvalEdge can plug into Snowflake metadata and enhance visual discovery.

Step 6: Sync with your data catalog or governance tool

If your team uses a data catalog, lineage should feed directly into it. Use the GET_LINEAGE() function or metadata views to export relationships and ingest them into your data catalog (e.g., OvalEdge).

Map technical objects to business terms for audit-ready lineage across layers. This creates end-to-end visibility across business and technical layers, useful for audits and discovery.

Step 7: Validate lineage for accuracy

Before rolling this out to other teams, you need to validate what the lineage system is capturing.

Checklist:

• Run GET_LINEAGE() on known datasets and verify the output matches expected flows.

• Compare with your ETL diagrams or DAGs (if you're using tools like Airflow, dbt, Matillion).

• Identify objects or queries not being captured (e.g., temp tables, dynamic SQL).

Create a validation dashboard with key tables and expected downstream objects, so you can track completeness over time.

Step 8: Monitor and maintain lineage continuously

Lineage is dynamic. Schedule monthly audits to detect gaps, track schema changes, and trigger alerts if critical objects lose downstream usage. Regular updates help prevent data blind spots and ensure governance continuity.

While Snowflake provides robust native lineage through metadata views and functions, many teams need more, like column-level tracking, business glossary integration, or cross-system lineage. That’s where data governance platforms like OvalEdge come in.

Let’s look at how you can set up advanced data lineage for Snowflake using OvalEdge.

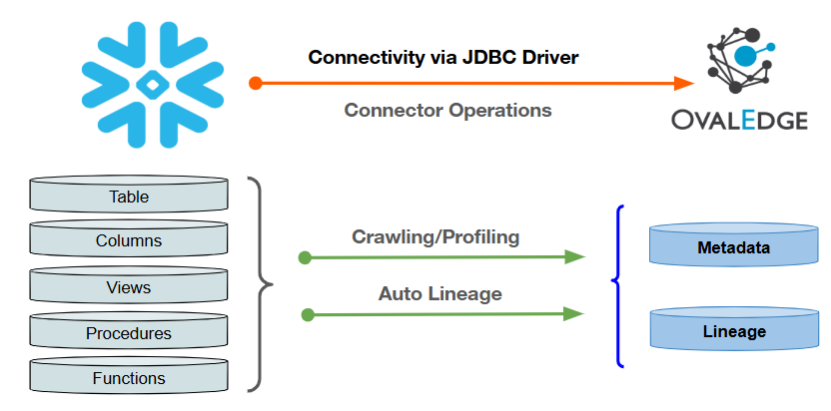

How to set up data lineage for Snowflake in OvalEdge

If you're using Snowflake but want more advanced lineage, including column-level detail, cross-system mapping, and integration with business glossaries, OvalEdge is a strong companion tool. It offers both automatic and manual lineage-building capabilities,  native Snowflake integration, and visualizations that connect your technical metadata with governance workflows.

Here’s how you can set it up:

Prerequisites before you begin

Before connecting OvalEdge to Snowflake, make sure you have the following in place:

• Port 443 whitelisted (default Snowflake port).

• A dedicated service account with permissions like:

  • USAGE on databases and schemas.

  • SELECT on information_schema tables like tables, columns, views, procedures.

  • Ability to run SHOW and DESC commands for views, stored procedures, user-defined functions, tasks, streams, and stages.

• Connector Creator or Integration Admin role in OvalEdge.

Step-by-step: connect Snowflake in OvalEdge

1. Log in to OvalEdge.


2. Go to Administration > Connectors, click the + New Connector button.

3. Choose Snowflake as the connector type.

4. Enter connection details like:

   • Connector Name (e.g., Snowflake_Prod)

   • Environment (PROD, STG, etc.)

   • Snowflake Server Address

   • Port (default: 443)

   • Database, Warehouse, Role, Username, Password or Private Key

5. Choose your Authentication Method:

   • Username & Password

   • Key Pair Authentication

6. Select a Credential Manager (e.g., OE Credential Manager, AWS Secrets Manager).

7. Enable checkboxes for:

   • Auto Lineage

   • Data Quality

   • Data Access

8. Click Validate → then Save & Configure.

Crawl, profile & build lineage

Once the connection is live:

1. Navigate to the Connectors page.

2. Click Crawl/Profile.

3. Select the schemas to include.

4. Choose either:

   • Crawl (metadata only)

   • Crawl & Profile (metadata + data profiling)

5. Click Run. Metadata is extracted and loaded into the OvalEdge Data Catalog.

6. You can also schedule automatic crawling at custom intervals (hourly, daily, weekly, etc.).

Viewing & managing lineage

After crawling is complete:

• Go to any asset (table, column, view) in OvalEdge and click the Lineage tab.

• OvalEdge auto-generates lineage based on:

  • SQL parsing from Snowflake

  • View and procedure logic

  • Relationships between upstream and downstream assets

• You can also:

  • Manually enhance lineage graphs

  • Tag business terms from the glossary

  • Overlay data access policies

Sync with governance workflows

OvalEdge doesn’t stop at technical metadata. It links Snowflake data lineage to:

• Business glossaries

• Governance roles and policies

• Data quality rules and anomaly detection

• Access instructions for sensitive assets

This means you can visualize how a specific field in a Snowflake table impacts a financial report and who accessed it within the same workflow.

By pairing Snowflake with OvalEdge, you go beyond native metadata. You get a full-stack view of your data's journey, from raw ingestion all the way to boardroom dashboards, with governance, access control, and context built in.

Use cases of data lineage

Once data lineage is set up in Snowflake, it’s not just a technical feature; it becomes a foundational tool for analytics, engineering, governance, and compliance teams. Here are the most valuable ways you’ll use it in practice.

1. Impact and change analysis

Before you change a table, update a pipeline, or drop a column, you need to know what might break.

Snowflake’s lineage tools let you visualize exactly which downstream assets, like reports, views, dashboards, or tables, depend on the object you're planning to modify. This helps avoid disruptions to business-critical workflows.

Key benefits:

• Preview downstream impact before deployment

• Reduce breakage from schema or logic changes

• Improve coordination between data engineering and BI teams

2. Root cause and incident investigation

When a report shows inaccurate data or a dashboard suddenly breaks, lineage helps you move upstream fast.

Instead of checking each table manually, you can trace the flow backward from the affected object to the source. This makes it easier to pinpoint whether the issue started in a transformation step, a misconfigured ETL job, or even an ingestion error.

Key benefits:

• Speed up time-to-resolution during incidents

• Restore trust in analytics outputs

• Reduce downtime for critical reporting tools

3. Regulatory compliance and audit trails

Lineage is essential for proving how data flows through your system, especially when you're audited for GDPR, HIPAA, SOX, or similar regulations.

Snowflake’s lineage metadata provides a clear, timestamped record of where sensitive data originated, how it transformed, and who accessed it.

Compliance advantages:

• Automatically log access and transformation history

• Demonstrate data integrity and processing accountability

• Simplify internal and external audit reporting

Troubleshooting, performance & maintenance

Implementing lineage is only part of the job. Maintaining its accuracy and performance is what ensures long-term value. Here are the most common issues teams run into and how to fix them.

1. Common pitfalls and fixes

Snowflake’s lineage tools are powerful, but not foolproof. Here are issues you’re likely to encounter:

Common issues:

• Missing privileges (VIEW LINEAGE), preventing access to lineage data

• Unsupported object types, like temporary views or transient tables not being captured

• Lineage data disappearing after object renames or drops

Quick fixes:

• Double-check your role permissions and ensure users have the VIEW LINEAGE privilege

• Avoid using unsupported object types for production workflows where traceability matters

• Refresh lineage metadata regularly to account for renamed or dropped objects

Always verify your setup after major schema or pipeline changes.

2. Dealing with missing or incomplete lineage

Sometimes lineage graphs show gaps or nothing at all. This often stems from system limitations or pipeline design choices.

Common scenarios:

• Temporary or transient tables are excluded from metadata history

• Incomplete or failed queries never log dependencies

• Data pipelines that bypass Snowflake (e.g., using external processing) are invisible

What to check:

• Confirm the source query completed successfully

• Re-run lineage extraction using GET_LINEAGE() or refresh the cache

• Check system logs for failed tasks or blocked object updates

• Use query history to manually reconstruct missing lineage when automation fails

Where gaps persist, consider using third-party tools that enrich Snowflake’s native metadata with parser-based lineage.

3. Performance considerations (Large schemas, deep graphs)

As your data footprint grows, lineage metadata can become large and complex. Poorly managed lineage graphs can slow down visualizations and cause confusion instead of clarity.

Optimization tips:

• Use filters to limit lineage depth (e.g., one or two levels upstream/downstream)

• Break large environments into domains (e.g., marketing, finance, product) and manage lineage separately

• Enable caching for frequently accessed lineage queries

• Prune deprecated or unused objects regularly to reduce graph size

• Visualize only what’s needed. Column-level lineage for audit, table-level for BI planning

Why OvalEdge is the best fit for Snowflake data lineage

While Snowflake offers strong native lineage features like GET_LINEAGE() and Snowsight visualizations, they’re limited to within the Snowflake ecosystem and mostly at the object level. That’s where OvalEdge steps in to fill the gaps.

1. Column-level and cross-system lineage

Snowflake’s native lineage doesn't always capture column-level transformations or lineage beyond its platform (e.g., from ETL pipelines or BI tools). OvalEdge parses SQL, procedures, and ETL logic to automatically build fine-grained, column-level lineage, connecting Snowflake with tools like Tableau, Power BI, and dbt.

2. Automated metadata crawling and profiling

With its Snowflake connector, OvalEdge can automatically crawl and profile your Snowflake metadata, pulling in views, tables, columns, procedures, and more. This gives you a complete inventory of your Snowflake environment with context and quality scoring.

3. Plug-and-play setup with security in mind

OvalEdge connects via secure JDBC using service account roles and supports credential managers like AWS Secrets Manager or Azure Key Vault. With a few permissions (like SELECT on INFORMATION_SCHEMA), you’re ready to go.

4. Governance, glossaries, and access management

What makes OvalEdge stand out is its integration of lineage with governance workflows. You can tag Snowflake objects with glossary terms, enforce access policies, and link data usage with compliance mandates like GDPR or SOX, all from one place.

5. Visual lineage graphs with drill-downs

Beyond just tables and views, OvalEdge lets you drill into lineage by object type, domain, or business process. You can instantly answer: What downstream dashboards will break if I deprecate this column? Or which pipeline introduced that anomaly?

By combining Snowflake’s metadata with OvalEdge’s governance engine, your data lineage becomes more than a diagram; it becomes a source of truth for engineering, compliance, and business teams alike.

Conclusion

As Snowflake continues to power mission‑critical data workloads, the ability to see exactly how data flows across your ecosystem is no longer optional. Data lineage gives you clarity. It tells you what changed, where it changed, and why the output looks the way it does. More importantly, it ensures the reports and insights you deliver are trusted by the people who rely on them.

Snowflake gives you the native metadata foundation to build that trust. You can visualize dependencies instantly, track the lifecycle of every dataset, and stabilize even the most complex pipelines. But as your environment expands across ETL tools, BI applications, and governance processes, native lineage alone may not provide the full picture your business needs.

That’s where a platform like OvalEdge becomes invaluable. By automatically enriching Snowflake lineage with column‑level mapping, cross‑system visibility, and business glossary context, OvalEdge helps teams move from “we think this is correct” to complete confidence in every decision.

If you’re ready to take lineage beyond Snowflake’s walls and give your business a single source of truth for how data flows across the organization, book a personalized OvalEdge demo and see what full‑stack lineage can unlock for you.

FAQs

Q1. Does lineage in Snowflake cover data ingested from external systems (e.g., S3, on‑prem databases)?

Yes. While native lineage in Snowflake captures how data objects inside Snowflake depend on each other, it also records how external sources load into Snowflake. That said, if you need full end‑to‑end visibility (from application to BI tool via Snowflake and beyond), you often pair Snowflake’s native metadata with external catalog or lineage tools.

Q2. Can I visualise column‑level lineage in Snowflake, and what are its limitations?

You can trace column‑to‑column relationships using metadata such as ACCESS_HISTORY with OBJECTS_MODIFIED, and see column lineage within the UI in Snowsight. However, some transformations (especially nested or dynamically generated ones) might not show full column‑level detail without additional parsing or third‑party tooling.

Q3. How does Snowflake’s lineage tracking differ from traditional ETL tool lineage?

Traditional ETL lineage often relies on external tools scanning pipeline definitions and query logs. In contrast, Snowflake’s lineage is native: object dependencies and data movements within the platform are tracked automatically as part of its metadata services. This means less manual instrumentation and a tighter tie‑in with compute/storage usage.

Q4. What are the prerequisites and permissions needed to enable lineage features in Snowflake?

To leverage lineage, you need appropriate privileges such as VIEW LINEAGE and access to built‑in views like ACCESS_HISTORY, OBJECT_DEPENDENCIES, and QUERY_HISTORY. Also, you’ll want Snowflake editions that support full lineage (e.g., Enterprise or higher). Without these setup steps, lineage graphs may appear incomplete or yield no results.

Q5: Can lineage metadata itself impact performance or cost in Snowflake?

Generally, no. Lineage tracking runs as part of the metadata engine and doesn’t add latency to your regular queries. That said, if you extract and visualise very large lineage graphs (for thousands of objects) and store them in additional tables or dashboards, you should monitor compute/warehouse usage for those tasks.

Q6: How do I maintain the accuracy of lineage as pipelines evolve in Snowflake?

Since pipelines change, tables are renamed, and transformation logic evolves, lineage must be treated as a living asset. You should schedule lineage metadata extraction (e.g., via Snowflake Tasks), periodically validate lineage against known pipelines, prune deprecated objects, and embed lineage checks into your governance workflows to ensure the graph stays current and reliable.
