Data Vault Architecture Explained (2025)

Data vault modeling stabilizes volatile data ecosystems by decoupling identifiers, relationships, and descriptive details. Hubs, links, and satellites enable incremental integration, full historical retention, and governed rule application across raw and business vault layers. The approach minimizes rework when systems evolve, supports compliance, and delivers a long-term architectural foundation suited to complex, rapidly changing analytics environments.

Data evolves fast. Data architectures often don’t. Businesses keep adding new sources, new applications, new formats, mergers, and third-party feeds. Regulatory demands pile up, while legacy models remain rigid, fragile, and hard to change.

Teams struggle to answer:

• Where did this data come from?

• What changed and when?

• Can we trace data back to the exact source instantly?

• Can we add a new data feed without breaking existing pipelines?

According to the Data-driven Enterprise of 2025 by McKinsey Study, only a small portion of data from connected devices is actually ingested, processed, queried, and analyzed in real time, due to outdated architectures, slow modernization, and the heavy compute needs of real-time workloads.

Companies are often forced to pick between speed, accuracy, or depth, slowing innovation and blocking data-driven decisions. Traditional dimensional and normalized models were never designed for continuous change, high-volume history tracking, or complex lineage needs, and they eventually buckle.

In this blog, we explore Data Vault Architecture, a modern, modular approach to building scalable, auditable, and future-ready enterprise data systems.

What is data vault architecture?

Data vault architecture is a modern data modeling approach that stores enterprise data using hubs, links, and satellites to ensure scalable integration, full historical tracking, and auditable lineage.

It separates business keys, relationships, and descriptive attributes to support evolving data sources without redesign. It enables governed, flexible, cloud-aligned data storage using metadata-driven automation and ELT pipelines.

It supports long-term analytics, compliance, and transformation by retaining all historical states with traceable load metadata. Data vault architecture fits complex, multi-source environments that require agility, auditability, and continuous change management.

Core components of data vault architecture

Data vault architecture is built on three foundational entities that work together to balance stability, flexibility, and long-term historical accuracy. These entities separate business identifiers, relationships, and descriptive attributes so that each can evolve without forcing downstream redesign.

Hubs

Hubs represent the definitive list of business keys that uniquely identify entities across the organization. These keys retain meaning independent of application logic or system-specific identifiers, which makes them resilient when applications are replaced, merged, or reengineered.

The value of a hub is in its stability. If several operational systems use different identifiers for a customer, the hub reconciles them into a single enterprise key through source tracking and time-based load metadata.

A hub table typically holds three categories of data:

• The durable business key

• Metadata that identifies where the record originated, and

• Timestamps reflecting when it was processed.

No descriptive attributes are stored in a hub because descriptions tend to change and are not required to uniquely identify the record. This design prevents business rule changes from compromising the warehouse’s identity layer and reduces rework in large-scale environments where systems change over time.

Hubs are often the first point of analysis for lineage-related questions because they establish the canonical set of entities recognized across business units. In practice, they act as a backbone for the entire data vault, allowing integrations from CRM, ERP, finance, e-commerce, and external partner feeds to coexist even when those systems evolve independently.

Links

Links represent relationships that connect one or more hubs. They capture many-to-many associations without embedding business rules or hierarchies. A link records how entities interact or relate at a specific point in time, preserving the context needed for reconstruction and impact analysis.

Links are valuable when organizations need to integrate data from multiple operational systems that may model relationships differently.

Link records also include metadata fields that allow data teams to trace when relationships were discovered, what source created them, and whether they were subsequently modified. Because relationships evolve more frequently than business keys, link tables are designed to accommodate new or changed associations without remapping the core model or rewriting historical relationships.

Satellites

Satellites capture descriptive, contextual, and historical details about hubs or links. They store attributes that are expected to change over time, such as customer profiles, order statuses, address details, or product attributes.

Each time a change is detected in the source systems, satellites record a new version instead of updating the existing record, ensuring full historical accuracy for regulatory, analytical, and audit scenarios.

Satellites are not monolithic tables. They are grouped by patterns that enhance performance and maintain clarity, such as the frequency of data change, security classification level, business domain responsibility, or system origin.

By clustering attributes that behave similarly, satellites help avoid unnecessary growth when one high-change attribute shares a table with data that rarely changes.

In real operational scenarios, satellite structures are often used to support data comparison, trending, and survivorship logic in the business vault. They also enable selective retention strategies based on compliance rules and analysis needs, which is particularly important as cloud storage costs scale with usage.

Layers & structure: how the architecture works

Data vault architecture organizes data into structured, traceable, and purpose-built layers that work together from ingestion to business-ready analytics. Each layer has a distinct operational purpose, and clarity in how they connect is critical for scalability, audit compliance, and long-term maintenance.

Staging or persistent staging area

The staging layer is where data first arrives from operational and external source systems. It is intentionally designed as a low-processing environment where records are ingested as closely as possible to their original form.

This prevents premature data manipulation and makes it easier to analyze differences between source and stored states if validation issues occur. Persisting staging data also allows teams to replay loads when source systems provide corrections, late-arriving records, or revised business rules.

In practice, the staging area improves operational reliability because there is a clear checkpoint before data moves into the core warehouse. Teams who have dealt with silent transformation errors, hidden cleansing logic, or overwritten historical details in legacy warehouses understand why a persistent and traceable staging environment matters.

It acts as the controlled entry point that protects downstream structures when changes occur in external systems.

Raw vault and business vault

The raw vault is the central historical and integration layer of the data vault architecture. It stores data using hubs, links, and satellites without applying business rules, contextual interpretation, or filtering decisions.

The primary purpose of the raw vault is to retain complete, system-level history that reflects what was received, when it was received, and from which originating source. This makes it possible to answer root-cause questions that traditional warehouses struggle to support, particularly when historical records or changed values must be reviewed long after the original event.

The business vault builds on top of the raw vault with structures that apply agreed-upon logic to make data easier to interpret and analyze. These may include point-in-time constructs that reconstruct a view at any moment, derived entities that combine multiple sources, or rules that address multi-versioned records.

The business vault is not a reporting layer but a governed and reusable transformation layer where logic is defined once and shared consistently across analytic consumers. This separation reduces duplication because analysts do not have to reinvent rules in each dashboard or model.

Information delivery or data mart layers

The information delivery layer provides curated and performance-aligned structures that are intended for consumption by analysts, reporting systems, and data products. Typical outputs include dimensional models, denormalized tables, and semantic layers designed to support self-service tools.

Business rules are finalized here because it is the point closest to the analytical use case, and different domains may require distinct interpretations even when they share the same core raw and business vault data.

This layer completes the alignment from raw data capture to business value delivery. Organizations that adopt a data vault approach often emphasize that clarity in the final delivery layer minimizes friction for analytics teams by giving them access to trusted data rather than requiring them to navigate complex integration structures.

As architectures evolve toward lakehouse and cloud-native platforms, this delivery layer can support interactive dashboards, machine learning features, or operational data products without changing the underlying vault design

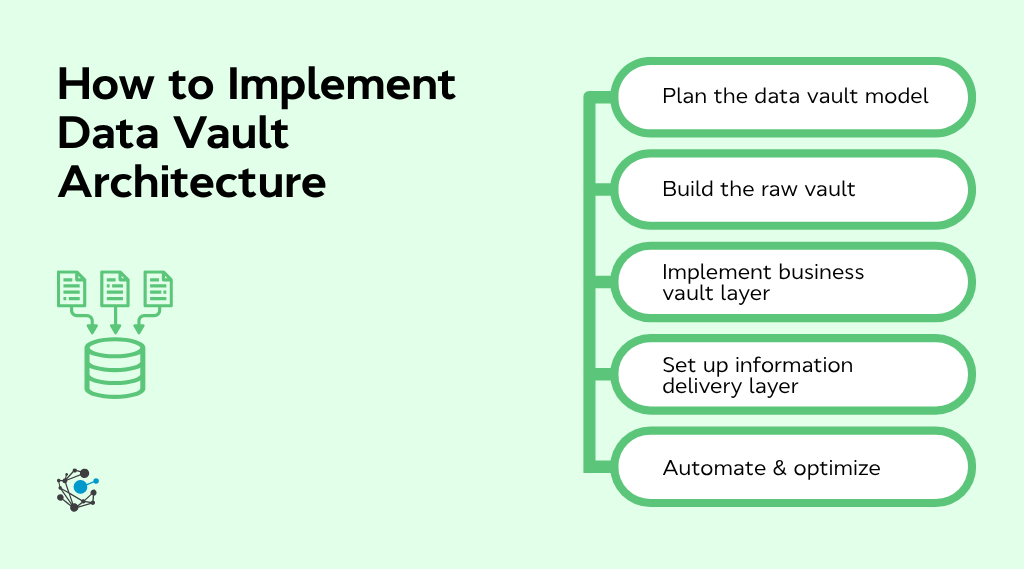

How to implement data vault architecture

Implementing a data vault requires a structured approach that aligns business understanding, technical enablement, and operational governance. The objective is to build a warehouse foundation that can evolve without redesigning core components.

The following stages reflect proven implementation patterns used across modern data platforms.

Step 1: Plan the data vault model

The planning phase focuses on business alignment rather than system schema. Start by identifying which business entities truly represent long-term, stable concepts rather than application-level constructs.

These become candidates for hubs because their identifiers are expected to persist regardless of how systems evolve. Selecting a temporary identifier from a single operational system can lead to redesign later if that system is replaced or merged.

Where teams usually get stuck:

• Teams often struggle to define which business entities are stable enough for long-term use. This leads to over-complicating the model by including too many volatile identifiers.

• Aligning business users on what qualifies as a “core business key” can delay the planning phase.

Skills required:

• Strong business acumen to align data models with evolving business processes.

• Expertise in metadata management to ensure traceability and lineage from day one.

Planning includes studying how entities interact across departments, reviewing existing integration rules, and understanding where identity conflicts currently exist. Many organizations discover during this stage that the same business object is represented with different identifiers in different systems, which indicates the need for source tracking.

Trade-off:

• Incomplete or unclear planning here can lead to rework later when unforeseen data conflicts emerge between systems. Spending more time upfront avoids costly revisions down the road.

A careful review of metadata requirements is also useful because lineage, auditability, and time variance need to be planned from day one rather than added as an enhancement.

Step 2: Build the raw vault

The raw vault is created using hubs, links, and satellites defined in the planning stage. It is populated using extract and load techniques that preserve original values, timestamps, and source information.

Where teams usually get stuck:

• Handling data consistency and source tracking can become a bottleneck. Teams may struggle with designing an effective loading pattern that is consistent and scalable.

• Data governance and metadata capture can fall behind, leading to lack of traceability or auditability.

Minimal transformation logic is applied to prevent early data interpretation. Consistency in loading patterns matters because the raw vault becomes the historical reference point used for reconciliation, compliance validation, and troubleshooting.

Skills required:

• Data engineering expertise in ETL/ELT processes, especially on cloud platforms.

• Familiarity with cloud storage and compute resources for scaling, like partitioning, indexing, and automated metadata capture.

Using cloud platforms is common because the raw vault can grow rapidly as historical records accumulate. Horizontal scaling and storage elasticity help manage costs and performance over time.

Automation:

• Essential: Automating the extraction and loading process is critical to handle the growing volume of historical records. Teams often face difficulty without automated testing and deployment pipelines to ensure consistency and reduce operational risks.

Trade-off:

• If the raw vault isn’t constructed with scalability in mind, future maintenance becomes increasingly complex and expensive. Prioritize automation to ease ongoing scaling challenges.

Becoming disciplined with naming conventions, load frameworks, and metadata capture early in the build process reduces maintenance complexity later and helps ensure that future automation can be applied effectively.

Step 3: Implement the business vault layer

Once the raw vault is operational, derived structures are created in the business vault. These structures apply rules that transform raw data into interpretable information.

Where teams usually get stuck:

• As business rules evolve, managing and versioning them without disrupting the historical data can become challenging.

• Business users may introduce evolving requirements, which can lead to rework if the vault isn’t designed to accommodate iterative rule changes.

These rules are deliberately separated from operational ingestion so they can be versioned and tested without impacting the historical audit trail.

The business vault also supports reusable calculations and reference structures. Implementing these rules once and exposing them broadly reduces the risk of duplicate logic appearing in multiple downstream reports or analytics workflows.

Trade-off:

• Skipping automation or relying too heavily on manual intervention can slow down the rollout of new rules and affect the integrity of the data model.

Clear documentation and stable development processes are important at this stage because business rules often evolve based on feedback from analytical users.

Skills required:

• Expertise in business rule modeling and data transformation.

• Collaboration between business analysts and data engineers to ensure the transformation logic meets evolving needs.

Automation:

• Essential: Automating business rule applications and transformation logic can speed up the process of adding new data or adjusting existing rules. Without automation, reapplying business logic can become a manual, error-prone process.

Step 4: Set up the information delivery layer

The information delivery layer presents data using models optimized for access and analysis. Data may be published into dimensional models, wide tables, or domain-specific views depending on usage patterns.

This layer connects the data vault to the tools used for analytic reporting, dashboarding, advanced analytics, and data products that serve both business and technical users.

Where teams usually get stuck:

• Balancing performance optimization with data flexibility is difficult. As usage patterns evolve, queries can slow down, and the delivery layer may need constant refinement.

• Aligning with end users on reporting and analysis needs can cause delays, especially in large, decentralized organizations.

Skills required:

• Experience in performance tuning and optimization, especially in cloud environments.

• Understanding of data modeling for end-user reporting and business intelligence (BI) tools.

Trade-off:

• An early focus on quick wins may result in a delivery layer that can’t handle the scale of future queries. Iterative improvements are essential to ensure long-term usability without sacrificing performance.

Performance tuning becomes more relevant here because the delivery layer is where query frequency and response expectations are highest. The delivery layer can be refined iteratively as adoption patterns emerge. Collaboration with data analysts and product teams is necessary to align data structures with the questions and use cases they prioritize.

Step 5: Automate and optimize

Automation is key for scaling data vault operations because manual development approaches become unsustainable as new sources and satellites are added.

Where teams usually get stuck:

• Setting up effective automation frameworks for testing, deployment, and monitoring can be time-consuming. If these systems aren’t well-established early on, the team may encounter operational bottlenecks later.

• Optimizing performance as the data warehouse grows often involves fine-tuning components that weren’t initially prioritized.

Skills required:

• Deep knowledge of orchestration frameworks, automated testing tools, and cloud-based workflows.

• Expertise in lifecycle management to ensure consistent monitoring and optimization over time.

Automation:

• Essential: Automating data workflows, orchestration, and testing is crucial for scaling. Without automation, the manual overhead will stifle growth and introduce errors in the data pipeline.

Trade-off:

• Neglecting automation early can create a maintenance nightmare as the project scales, making it harder to ensure quality, consistency, and efficiency.

Automation may involve code generation, metadata-driven workflows, orchestration frameworks, or monitoring capabilities. Automated testing and deployment pipelines can reduce operational risk and help teams add new entities without slowing project timelines.

Optimization focuses on improving performance where data volume or query patterns change over time. This may involve indexing, partitioning, load scheduling, or lifecycle management. The vault should be treated as a living system where expansion and tuning are expected rather than one-time tasks.

Difference between data vault & data warehouse

Traditional data warehouses rely on predefined business rules and transformation logic, which means most of the effort happens upfront. When reporting needs or source systems change, large parts of the model must be reworked, causing delays, redesign cycles, and risk to historical reporting.

Data Vault architecture takes the opposite path by separating business keys, relationships, and descriptive attributes into independent components. This makes it easier to onboard new sources, maintain full history, and adapt to evolving requirements without restructuring the core model.

With Data Vault, you collect and preserve first, interpret and refine later, making it suitable for modern, fast-changing data landscapes.

When to use a data vault versus a traditional data warehouse

A data vault approach is suited for data environments that experience frequent change. Organizations that are integrating data from multiple systems or onboarding new sources regularly can benefit from the modular structure of hubs, links, and satellites.

Data vaults can also help when teams are required to retain detailed history for auditing, regulatory review, or analytical reconstruction. Projects that value incremental delivery or operate in environments where requirements evolve over time may find data vault architecture easier to maintain.

A traditional data warehouse approach may be appropriate when business rules are well defined and unlikely to change or expand.

Organizations with a small number of consistent, centralized source systems may find a dimensional model easier to implement and optimize for reporting performance. If the focus is on producing fixed dashboards or standardized scorecards rather than supporting broad data integration, a traditional warehouse can be sufficient.

In these situations, the cost and complexity of adopting a vault approach may not provide additional value.

Benefits of data vault architecture

Adopting a data vault approach can address several challenges that organizations encounter when building or modernizing an enterprise data warehouse. Its structural principles are designed to support long-term growth, change, and governance needs without requiring repeated redesign of core data assets.

Flexibility and adaptability

Data Vault separates business identifiers, relationships, and changing descriptive attributes into distinct entities. This reduces dependency between modeling components and allows new data sources or attributes to be integrated with fewer structural changes.

When business units introduce new applications or modify existing ones, only the related components need to be added or updated, decreasing the risk of impacting existing historical data or reporting structures.

This flexibility becomes even more critical as enterprises move toward connected, AI-ready data ecosystems. According to a recent IBM study on AI data agents, building a solid data foundation starts with a data layer that connects, enriches, and governs all data sources, serving as the core enabler for AI systems fluent in organizational context and voice.

With that foundation, decisions remain trustworthy, workflows accelerate, and productivity scales, all without compromising historical integrity.

Flexibility is particularly valuable in enterprises where mergers, regulatory updates, or technology shifts occur regularly and data models must evolve rather than reset.

Scalability

The hub, link, and satellite design produces highly normalized tables that can grow by adding new records rather than modifying existing structures. This pattern works efficiently with cloud and distributed data platforms that separate storage and compute, making it possible to handle growing data volumes and event-driven feeds.

Scaling is not limited to hardware capacity. It also applies to data engineering work because development can be partitioned across teams without crossing schema dependencies. Organizations aiming for large-scale integration across departments or regions often find that this structure supports incremental expansion without introducing performance bottlenecks in core layers.

Historical accuracy and auditability

Data vault stores all data changes as new records rather than overwriting previous versions. This allows teams to reconstruct what the data looked like at any point in time and see how values evolved.

Full historical retention helps when verifying decisions, responding to compliance inquiries, or validating how data from different systems converged. Metadata fields capture source and load information to support traceability, making it easier to determine how a value arrived in the warehouse.

This design is important for organizations operating in regulated sectors or those that rely heavily on retrospective analysis and model validation.

Agile implementation

The modular design enables teams to develop and deploy components in smaller increments rather than waiting for a fully defined model. Business keys and relationships can be loaded early, while descriptive attributes and derived structures are added as the information becomes available.

This supports development approaches where requirements evolve based on user feedback. It also allows data integration work to progress even when business transformation or system consolidation projects are still underway.

Agile implementation reduces project risk by delivering usable data earlier and spreading development effort over time rather than creating long delivery cycles.

While Data Vault offers flexibility and scalability, its complexity can lead to higher initial development costs and longer setup times. The modular design, which separates business keys, relationships, and attributes, may feel overly granular to those accustomed to simpler, more consolidated data models.

Additionally, because Data Vault prioritizes agility and historical accuracy, organizations may face challenges in maintaining performance during the ongoing integration of new data sources.

However, these challenges are often outweighed by the long-term benefits of reduced redesign efforts, improved data governance, and the ability to scale and adapt quickly as business needs evolve.

Conclusion

According to a 2023 Accenture study about Enterprise data, nearly 30% of corporate data will be synthetic, created by simulations, digital twins, and AI-driven systems.

This shift means enterprises will no longer manage only real-world data. They must also ensure alignment, traceability, versioning, trust scoring, and lineage across two parallel data universes.

Without a flexible and fully auditable data foundation, synthetic data can quickly drift from reality, making insights unreliable and governance nearly impossible.

So the real question becomes:

• Can your architecture prove where every data point originated from, real or synthetic?

• Can it retain full historical context when business logic evolves?

• Can it scale without re-engineering every time you add a new data source or rule?

Most legacy, tightly coupled data systems weren’t engineered for this pace of evolution. They excelled in stability, not adaptability and today, that trade-off is costly.

To compete, enterprises need a layered, metadata-driven, audit-rich foundation that fuels long-term data trust. Data Vault Architecture enables that foundation, making it possible to standardize how data is captured, track every change with certainty, and evolve without breaking your warehouse.

Because in the new data era, success follows a clear sequence: solid data foundation → trusted data quality → enforceable governance → scalable, accountable AI.

As you navigate this transformation, implementing a robust governance layer is key to ensuring data integrity and compliance across evolving data landscapes.

OvalEdge complements Data Vault architectures by providing powerful governance tools that sit on top of your data foundation, ensuring seamless traceability, data quality, and compliance.

Struggling to scale, trust, or govern your data while your architecture keeps falling behind?

See how OvalEdge strengthens data quality, lineage, and governance on top of modern data systems.

Book a demo today and build a governance model you can trust, at scale

FAQs

1. What is the difference between Data Vault and a Data Lake?

A data lake stores raw, unmodeled data from any source with flexible schema-on-read access, mainly for exploratory analytics. Data vault architecture stores structured, historized, auditable data using hubs, links, and satellites to ensure traceability, consistency, and long-term enterprise data management.

2. What are the different types of Data Vaults?

Data vault is generally categorized into Raw Vault and Business Vault. The Raw Vault stores unmodified, historical data structures from source systems, while the Business Vault applies business rules, enrichment logic, and calculated attributes to improve analytical usability.

3. What is the difference between Data Vault modeling and Data Vault architecture?

Data vault modeling refers to the design approach using hubs, links, and satellites to structure enterprise data. Data vault architecture refers to the full system implementation that includes staging, raw vault, business vault, data pipelines, automation, orchestration, and delivery layers.

4. Is Data Vault suitable for real-time or near-real-time data processing?

Data vault supports incremental and frequent loading, which aligns with near-real-time ingestion patterns. Real-time use requires supporting platforms and streaming pipelines, but the architecture itself remains valid as long as historical, auditable capture remains intact.

5. Can Data Vault be used with data lakehouse platforms?

Yes, data vault aligns well with modern lakehouse platforms that combine storage, compute, and governance features. Hubs, links, and satellites can be stored in lakehouse storage while transformation and serving layers run using query engines or semantic models.

6. Can existing data warehouses be migrated to Data Vault?

Yes, organizations can migrate gradually by mapping existing warehouse entities to business keys and relationships, then layering satellites for descriptive history. Incremental migration reduces risk and avoids full system rebuilds, making Data Vault suitable for modernization projects.
